Common Plumbing Symbols Explained: A Singapore Homeowner’s Guide

Plumbing symbols are standardized pictures and abbreviations used on drawings to show fixtures, pipes, valves and drains. They let plumbers, contractors and designers read a layout at a glance. If you are renovating a flat or reviewing a floor plan, knowing the basics helps you ask better questions and avoid costly surprises.

This guide explains the most common plumbing symbols you will see in Singapore homes, how to read them, and when to bring in a licensed professional.

Why Plumbing Symbols Matter

A plumbing plan is a map of how water enters, moves through, and leaves your home. Instead of drawing every pipe realistically, drawings use simple shapes and short codes.

You will find them on:

• Renovation and interior design drawings
• Builder or developer floor plans for BTO, condominium and landed homes
• Plumbing submissions and as-built drawings

Reading them correctly means you can spot where a basin will sit, where a floor trap is planned, or whether a heater has an isolating valve before work begins.

Common Fixture Symbols and Abbreviations

Fixtures are usually shown as outlines of the real object, often with a label.

These are the ones you will meet most in Singapore:

If you see a small circle or square with an abbreviation, check the legend on the drawing. Symbols are widely consistent, but every drawing set can have its own variations.

Pipe Line Symbols: Hot, Cold, Waste and Vent

Lines tell you what is flowing and where.

Typical conventions include:

• Solid line: cold water supply
• Dashed line: hot water supply
• Heavier or labelled line: drainage or waste
• Dotted line: vent pipes (these let air in and out so drains flow properly)

Singapore drawings also commonly label pipes with short codes:

• SP: soil pipe (carries toilet waste)
• WP: waste pipe (carries water from basins, showers, sinks)
• VP: vent pipe
• RWP: rainwater pipe

Line styles can vary, so always confirm against the drawing’s legend before making decisions.

Valve and Fitting Symbols

Valves control or protect water flow, and their symbols are some of the most commonly confused.

A quick guide:

• Gate valve: two triangles meeting point to point (a “bow-tie”). It fully opens or closes flow.
• Globe valve: a bow-tie with a circle in the center, used to regulate flow.
• Ball valve: often a circle or bow-tie with a filled center, popular for quick shut-off.
• Check valve: a triangle or arrow against a line, allowing flow in only one direction.
• Pressure-reducing valve: a valve symbol with a spring or pressure indicator, used where supply pressure needs lowering.
• Water meter: typically a circle, often marked with an “M”.
• Cleanout (CO): a marked access point on a drain for clearing blockages.

Knowing where your isolating valves are is practical, not just technical. In a leak, shutting off the right valve can limit damage while you wait for help.

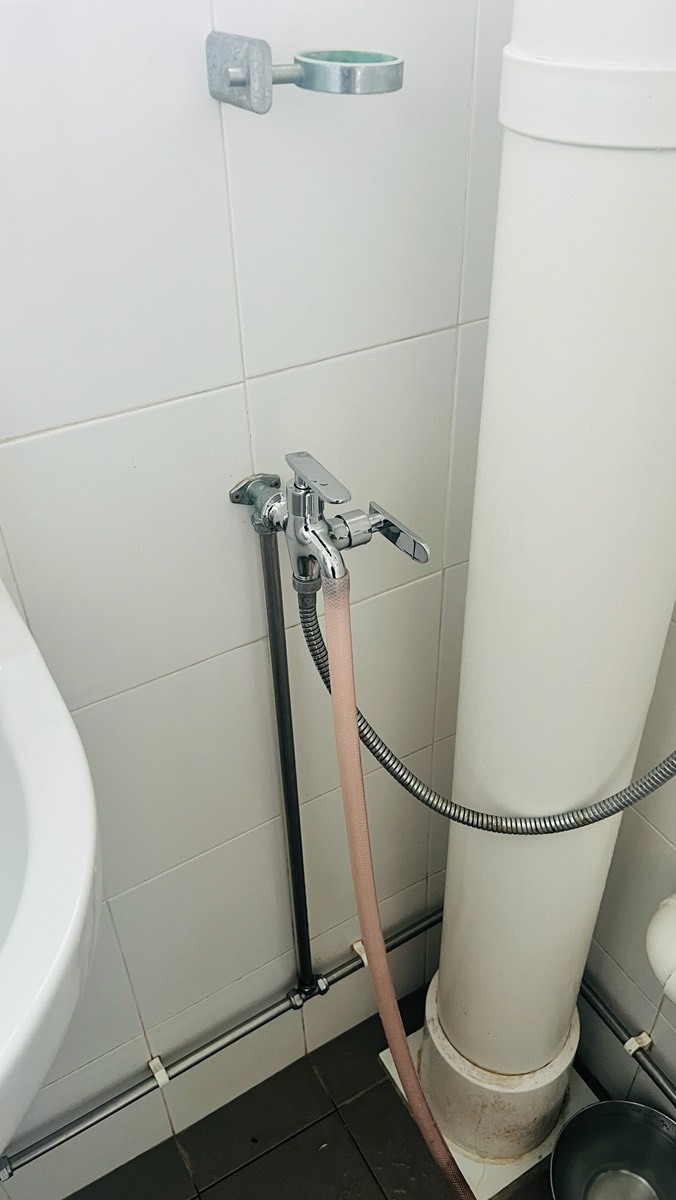

Symbols vs Real-World Fittings: Key Comparisons

Matching a symbol to what you see at home can be confusing.

Three common comparisons:

Floor trap (FT) vs floor drain (FD): A floor trap includes a water seal that blocks odors and pests from the drain, while “floor drain” is the broader term for the drainage point itself. In Singapore bathrooms and yards, the two are often discussed together, so confirm with your plumber which type is planned.

Isolating valve vs main valve: An isolating valve controls one fixture or zone, such as a heater or basin. The main valve controls water to the whole unit. Drawings may show both, so identify each before renovation.

Instant vs storage water heater: Both appear as “WH” but need different supply and space arrangements. Check the drawing notes or ask your contractor which is intended.

Singapore Rules: Licensed Plumbers, PUB and Standards

Singapore regulates water-related work closely.

Key points to know:

• PUB, Singapore’s national water agency, sets requirements for water services and drainage.
• Work on water service installations must be done by a PUB-licensed plumber. This protects water quality and prevents leaks and contamination.
• Plumbing design and installation follow recognized standards and codes, such as SS 636 for water services, and drawings use symbols consistent with these conventions.
• Many taps, showers and flushing fixtures carry WELS (Water Efficiency Labelling Scheme) labels. These show water efficiency ratings and may appear in your fixture specifications.

Requirements can change, so confirm current regulations with PUB or a licensed plumber before starting renovation work.

How to Read a Plumbing Drawing: Practical Tips

1. Start with the legend. It decodes every symbol used on that drawing.
2. Separate supply from drainage. Trace clean water lines first, then follow waste and vent lines.
3. Locate all valves. Note where isolating valves and the main valve are positioned.
4. Check fixture positions against the real space. Does the basin location conflict with a wall or cabinet?
5. List questions before work starts. Bring them to your interior designer, contractor or plumber, as changes mid-renovation cost more.
6. Keep a copy of the final plan. It helps future repairs and leak tracing.

When to Call EzPlumber.Sg

You do not need to decode every line alone. If a symbol is unclear or a drawing does not match what is on site, a plumber can clarify before problems arise.

EzPlumber.Sg can assist with:

• Leak detection and pipe repair
• Pipe replacement and re-piping during renovation
• Installation of basins, toilets, taps, showers and water heaters
• Drain and floor trap issues
• Reviewing plumbing layouts before or during renovation

When you call, have your floor plan or photos ready, along with your property type (HDB, condo or landed) and a short description of the issue. This helps provide a faster and more accurate quotation.

Frequently Asked Questions

Are plumbing symbols the same everywhere?
Most basic symbols are widely recognized, but styles can vary between drawings and countries. Always check the legend.

What does a circle with “M” mean on a plumbing plan?
It usually indicates a water meter.

What is a cleanout on a plumbing drawing?
A cleanout (CO) is an access point in a drain pipe that allows blockages to be cleared.

What does “WC” mean on my floor plan?
WC stands for water closet, which is the toilet.

Can I change plumbing myself after reading the plan?
Minor tasks such as replacing a tap washer may be manageable, but work on water service installations in Singapore must be done by a PUB-licensed plumber.

Where can I find the symbol legend?
It is usually in a corner of the drawing sheet or on a separate notes page. If it is missing, ask the drawing’s author or your plumber.

Final Thoughts

Plumbing symbols are simply shorthand for how water enters, flows through, and leaves your home. Learning the key ones, including fixtures, line styles, valves and Singapore pipe labels such as SP, WP, VP and RWP, makes renovations less stressful and helps you communicate clearly with professionals. For anything beyond basic reading, especially work involving water supply, a licensed plumber is the safest route.
